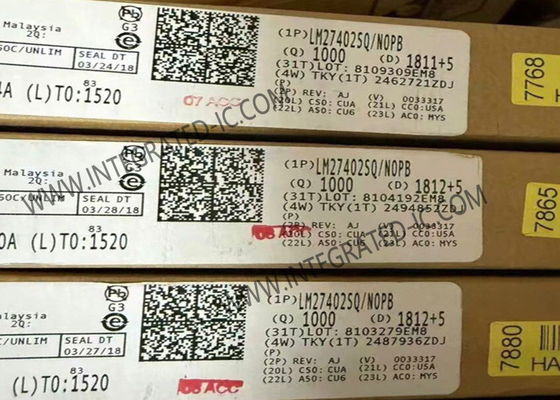

LM27402SQ Integrated Circuit Chip High-Performance Synchronous Buck Controller With DCR Current Sensing
LM27402SQ Integrated Circuit Chip High-Performance Synchronous Buck Controller With DCR Current Sensing
Descrizione
Part Number:
LM27402SQ
Number of Outputs::
1 Output
Switching Frequency::
200 kHz to 1.2 MHz
200 kHz to 1.2 MHz:
95 %
Output Voltage::
600 mV to 18.6 V
Output Current::
30 A
LM27402SQ Integrated Circuit Chip High-Performance Synchronous Buck Controller With DCR Current Sensing
Product Description Of LM27402SQ
LM27402SQ is a voltage-mode, synchronous, DC/DC step-down controller with lossless inductor DCR current sensing capability. Sensing the inductor current eliminates the need to add resistive powertrain elements, which increases overall efficiency and facilitates accurate, continuous current sensing. A 0.6-V ±1% voltage reference enables high accuracy and low voltage capability at the output. An input operating voltage range of 3 V to 20 V makes the LM27402SQ suitable for a large variety of input rails.
Specification Of LM27402SQ
1 Output
200 kHz to 1.2 MHz
95 %
600 mV to 18.6 V
30 A
- 40 C
+ 125 C
Unit Weight:
40 mg
Features Of LM27402SQ
Wide Input-Voltage Range of 3 V to 20 V
Inductor DCR or Shunt Resistor Based Overcurrent Protection
0.6-V Reference With ±1% FB Accuracy Across Full –40°C to 125°C Junction Temperature Range
Switching Frequency from 200 kHz to 1.2 MHz
Output Voltage as High as 95% of Input Voltage
Integrated High-Current MOSFET Drivers
Internal VDD Bias Supply LDO Subregulator
External Clock Synchronization
Adjustable Soft Start With External Capacitor
Prebiased Start-up Capability
Power Supply Tracking
Voltage-Mode Control With Line Feedforward
Open-Drain Power-Good Indicator
Precision Enable With Hysteresis
16-Pin HTSSOP and WQFN Packages
Applications Of LM27402SQ
High-Current, Low-Voltage Supply for FPGA and ASIC
General-Purpose, High-Current Buck Converters
DC/DC Converters and POL Modules
Telecom, Datacom, Networking, Distributed Power Architectures
