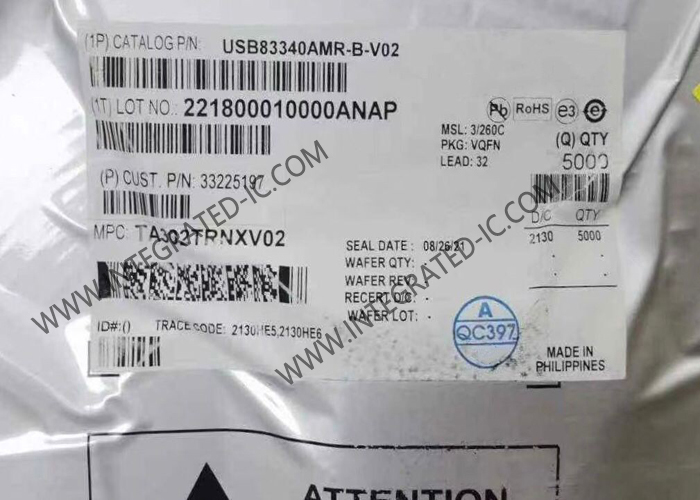

USB83340AMR-B-V02 Integrated Circuit Chip Hi-Speed Automotive USB Transceiver VQFN32
Product Description
USB83340AMR-B-V02 is a Hi-Speed USB 2.0 transceiver that provides a configurable physical layer (PHY) solution well suited for automotive applications.
USB83340AMR-B-V02 is optimized for use in applications where a low operating current and standby currents are essential. The device integrates 3.3 V and 1.8 V regulators, making it possible to operative the device from a single power supply.
Specification
| Product Category: |
USB Interface IC |
| Product: |
USB Transceivers |
| Type: |
OTG Transceiver |
| Mounting Style: |
SMD/SMT |
| Package / Case: |
VQFN-32 |
| Standard: |
USB 2.0 |
| Speed: |
Full Speed (FS), Low Speed (LS) |
| Supply Voltage - Min: |
1.6 V, 4.5 V |
| Supply Voltage - Max: |
3.6 V, 5.5 V |
| Operating Supply Current: |
56 mA |
| Minimum Operating Temperature: |
-40℃ |
| Maximum Operating Temperature: |
+105℃ |
Features
- Specifically designed, fabricated, tested, characterized and qualified for automotive applications
- Service and support
- USB-IF Battery Charging 1.1 Specification-compliant
- Link Power Management (LPM)-compliant
- Integrated ESD protection circuitry
- Nearly complete elimination of Hi-Speed electrical degradation
- Battery charging
- Stereo and mono/mic audio
- USB Full-Speed/Low-Speed data
- Sleep mode tri-states all ULPI pins and places the part in a low current state
- 1.8 V to 3.3 V I/O voltage
- Programmable USB transceiver drive strength for recovering signal integrity
- Programmable USB receiver sensitivity
- ULPI clock IN mode (60 MHz sourced by link)
- 0 to 3.6 V input drive tolerant
- Able to accept noisy clock sources as reference to internal, low-jitter PLL
- Supports multiple frequencies
- Crystal/resonator support
- Smart detection circuits allow identification of USB charger, headset or data cable insertion
- UART mode for non-USB serial data transfers
- Internal 5.0 V cable short-circuit protection of ID, DP and DM lines to VBus® or ground
- 32-pin (5 x 5 mm) QFN lead-free, RoHS-compliant package
- Automotive operating temperature range: -40 °C to +105 °C
Applications
The USB83340AMR-B-V02 is the solution of choice for any application where an automotive Hi-Speed USB connection is desired and when board space, power, and interface pins must be minimized.
- In-vehicle USB Host implementations
- Infotainment test interface
- Automotive integrated head unit
- Portable device charging via USB
- Rear seat infotainment access
- Internal connectivity bus
- Isolate high value SoCs from the outside world
