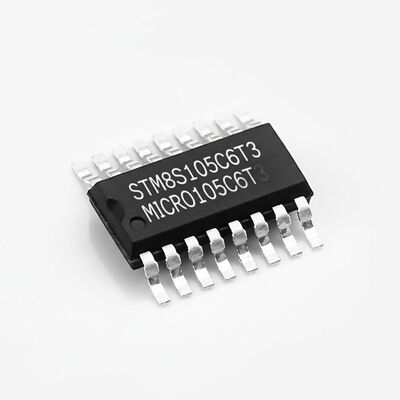

STM8S105C6T3 Microcontroller MCU High-Performance 8-Bit 16MHz with 32KB Flash Memory

STM8S105C6T3 Microcontroller MCU High-Performance 8-Bit 16MHz with 32KB Flash Memory
STM8S105C6T3 Microcontroller MCU High-Performance 8-Bit 16MHz with 32KB Flash Memory

Grande immagine :  STM8S105C6T3 Microcontroller MCU High-Performance 8-Bit 16MHz with 32KB Flash Memory

Dettagli:
Luogo di origine: CN
Marca: Original Factory
Certificazione: Lead free / RoHS Compliant
Numero di modello: STM8S105C6T3
Termini di pagamento e spedizione:
Quantità di ordine minimo: 10
Prezzo: Contact for Sample
Imballaggi particolari: 48-LQFP
Tempi di consegna: 3-5 giorni lavorativi
Termini di pagamento: T/T
Capacità di alimentazione: 10000 pezzi al giorno
Contatto

STM8S105C6T3 Microcontroller MCU High-Performance 8-Bit 16MHz with 32KB Flash Memory

Descrizione
Numero di parte: STM8S105C6T3 Dimensione della memoria del programma:: 32 kb
Dimensione RAM dei dati:: 2 kb Frequenza massima dell'orologio:: 16 MHz
Risoluzione ADC:: 10 bit Numero di I/O:: 38 ingressi/uscite
Evidenziare:

8-Bit Microcontroller MCU

,

16MHz Microcontroller MCU

,

32KB Flash Microcontroller MCU

STM8S105C6T3 Microcontroller MCU High-Performance 8-Bit 16MHz Microcontroller 48-LQFP
Product Description

STM8S105C6T3 is a high-performance 8-bit microcontroller from STMicroelectronics' mainstream access series. It employs the advanced STM8 core architecture with a maximum operating frequency of 16MHz, integrating 32KB flash memory, 2KB RAM, and 1KB real data EEPROM. The device offers extensive peripheral resources and industrial-grade reliability. Housed in a 48-pin LQFP package (7mm * 7mm), this device operates within a temperature range of -40°C to +125°C and supports a wide operating voltage range of 2.95V to 5.5V. It represents an ideal cost-effective embedded control solution for industrial control, automotive electronics, consumer electronics, and IoT terminal devices.

Specifications
Core Processor STM8
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 38
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
EEPROM Size 1K x 8
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 2.95V ~ 5.5V
Data Converters A/D 10x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C (TA)
Key Features
  • High-Performance STM8 Core: 16MHz CPU clock frequency supporting single-cycle instruction execution, delivering 20MIPS computational performance to meet real-time control demands. 3-stage pipeline design based on Harvard architecture, enabling parallel instruction prefetching and execution to enhance code execution efficiency. Integrated hardware multiplier and 16-bit divider for accelerated mathematical operations.
  • Generous Memory Resources: 32KB Flash program memory supports 10,000 erase/write cycles with 20-year data retention (at 55°C ambient temperature). 2KB SRAM data memory for runtime variables and stack management. 1KB integrated EEPROM supports 300,000 erase/write cycles, storing critical configuration parameters and user data without external memory. Memory protection mechanism supports read-out protection (ROP) to prevent firmware reverse engineering.
  • Extensive Peripheral Interfaces: 10-bit ADC supports up to 10 channels with conversion time of just 3.5μs. Communication interfaces include UART (supports LIN bus protocol), SPI (maximum data rate 8Mbps), I²C (Standard mode 100kHz/Fast mode 400kHz), and IrDA. Timers include advanced control timer (16-bit), general-purpose timers, watchdog timers (IWDG/WWDG). Up to 38 general-purpose I/O pins supporting external interrupt mapping.
  • Industrial-Grade Reliability and Low Power Consumption: Wide operating voltage range (2.95V to 5.5V) compatible with 3.3V and 5V systems. Extended temperature range (-40°C to +125°C) meeting automotive Grade 1 requirements. Low-power modes include Wait, Active Halt, and Halt modes (Halt mode current only 5μA). Integrated Power-On Reset (POR), Battery-Operated Reset (BOR), and Programmable Voltage Detector (PVD).
