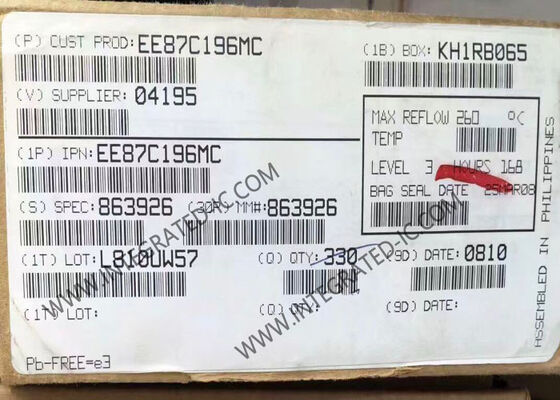

High-Performance 16-Bit 16MHz 5.5V Microcontroller designed primarily for 3-phase AC induction and DC brushless motor control applications.
The EE87C196MC is based on MCS@96 16-bit microcontroller architecture and manufactured with Intel's CHMOS process. This microcontroller features a three-phase waveform generator specifically designed for inverter motor control applications, enabling pulse width modulation and three-phase sine wave generation with minimal CPU intervention.
Control of 3-phase AC induction motors and DC brushless motors in industrial and manufacturing environments.
Available Packages
PLCC (84-L), SDIP (64-L), and EIAJ/QFP (80-L). Note: 64-L SDIP package excludes P1.4, P2.7, P5.1 and CLKOUT pins.
