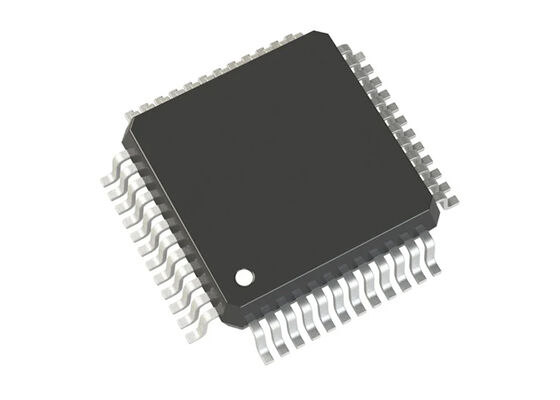

STM32L412C8T6 Microcontroller MCU
Ultra-Low-Power 32-Bit 80MHz ARM Cortex-M4 Microcontroller
Product Overview
The STM32L412xx devices are ultra-low-power microcontrollers based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at up to 80 MHz. The Cortex-M4 core features a Floating Point Unit (FPU) supporting single-precision data processing, DSP instructions, and a Memory Protection Unit (MPU) for enhanced application security.
Technical Specifications
| Core Processor |
ARM® Cortex®-M4 |
| Core Size |
32-Bit |
| Speed |
80MHz |
| Connectivity |
I2C, Infrared, IrDA, LINbus, Quad SPI, SPI, UART/USART, USB |
| Peripherals |
Brown-out Detect/Reset, DMA, PWM, WDT |
| Number of I/O |
38 |
| Program Memory Size |
64KB (64K x 8) |
| Program Memory Type |
FLASH |
| RAM Size |
40K x 8 |
| Voltage Supply |
1.71V ~ 3.6V |
| Data Converters |
A/D 10x12b |
| Oscillator Type |
Internal |
| Operating Temperature |
-40°C ~ 85°C (TA) |
Key Features
- ST state-of-the-art patented technology with FlexPowerControl
- Ultra-low-power operation: 1.71V to 3.6V power supply
- Temperature range: -40°C to 85/125°C
- Power modes: 300 nA in VBAT mode, 16 nA Shutdown, 32 nA Standby
- 0.7 µA Stop 2 mode, 79 µA/MHz run mode (LDO Mode)
- 4 µs wakeup from Stop mode with Brown out reset (BOR)
- Arm® 32-bit Cortex®-M4 CPU with FPU and ART Accelerator™
- Performance: 1.25 DMIPS/MHz, 273.55 CoreMark®
- Multiple clock sources including 4-48 MHz crystal oscillator
- Up to 52 fast I/Os (most 5V-tolerant)
- RTC with hardware calendar, alarms and calibration
- Up to 12 capacitive sensing channels
- 10x timers including motor-control and low-power variants
- 128 KB single bank flash with code readout protection
- 40 KB SRAM with hardware parity check
- Quad SPI memory interface with XIP capability
- Rich analog peripherals including 2x 12-bit ADC, operational amplifier
- 12x communication interfaces including USB 2.0 full-speed
- True random number generator and CRC calculation unit
- Development support: SWD, JTAG, Embedded Trace Macrocell™
- ECOPACK2 compliant packages
