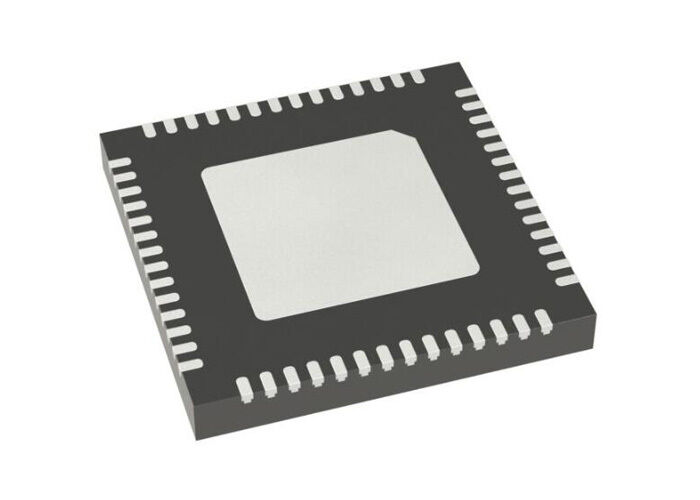

ESP32-S3RH2 Integrated Circuit Chip 150Mbps Low-Power MCU-Based System On Chip

ESP32-S3RH2 Integrated Circuit Chip 150Mbps Low-Power MCU-Based System On Chip​

Product Description Of ESP32-S3RH2

ESP32-S3RH2 is a low-power MCU-based system on a chip (SoC) with integrated 2.4 GHz Wi-Fi and BT® Low Energy (Bluetooth LE). It consists of high-performance dual-core microprocessor (Xtensa® 32-bit LX7), a ULP coprocessor, a Wi-Fi baseband, a Bluetooth LE baseband, RF module, and numerous peripherals.

Specification Of ESP32-S3RH2

Features Of ESP32-S3RH2

Wi-Fi
• Complies with IEEE 802.11b/g/n
• Supports 20 MHz and 40 MHz bandwidth in 2.4 GHz band
• 1T1R mode with data rate up to 150 Mbps
• Wi-Fi Multimedia (WMM)
• TX/RX A-MPDU, TX/RX A-MSDU
• Immediate Block ACK
• Fragmentation and defragmentation
• Automatic Beacon monitoring (hardware TSF)
• Four virtual Wi-Fi interfaces
• Antenna diversity
• 802.11mc FTM
Bluetooth®
• Bluetooth LE: Bluetooth 5, Bluetooth Mesh
• High-power mode with up to 20 dBm transmission power
• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• LE Advertising Extensions
• Multiple Advertising Sets
• LE Channel Selection Algorithm #2
• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna
CPU and Memory
• Xtensa® dual-core 32-bit LX7 microprocessor
• Clock speed: up to 240 MHz
• CoreMark® score:
– Two cores at 240 MHz: 1329.92 CoreMark; 5.54 CoreMark/MHz
• Five-stage pipeline
• 128-bit data bus and dedicated SIMD instructions
• Single precision floating point unit (FPU)
• Ultra-Low-Power (ULP) coprocessors:
– ULP-RISC-V coprocessor
– ULP-FSM coprocessor
• General DMA controller, with 5 transmit channels and 5 receive channels
• L1 cache
• ROM: 384 KB
• SRAM: 512 KB
• SRAM in RTC: 16 KB
• 4096-bit eFuse memory, up to 1792 bits for users

Applications Of ESP32-S3RH2

• Smart Home
• Industrial Automation
• Health Care
• Consumer Electronics
• Smart Agriculture
• POS Machines
• Service Robot
• Audio Devices
• Generic Low-power IoT Sensor Hubs
• Generic Low-power IoT Data Loggers
• Cameras for Video Streaming
• USB Devices
• Speech Recognition
• Image Recognition
• Wi-Fi + Bluetooth Networking Card
• Touch and Proximity Sensing
